Articulated Lift Desks are...

desks/tables whose height adjustment is generated by two parallel guided "arms".

This allows a quick and safe height adjustment (P-Modells) or also at the same time height- and inclination adjustment (S-Modells) »eg: ergo S72

Vertical lift desks...

are designed with an infinitely variable height adaptation through
one or two vertical "columns".

With the two-column design an electric drive is optionally available. »eg: ergo M3 R

variable desks with increment height adaption...

can be altered in height by four or five steps on each side for a change of hight from time to time with a snap adjustment.
(takes a minute)
»eg: variable desks

basic...

basic models are not inclineable in height but may also be multifunctional in other ways as for monitor racks or inclineable tops.
»eg: basic desks

Download catalog
in German - for
ergo S /F /N

Indication of Numbers as part of the product name:

1 - means a fixed table top without possible inclination of board. »Example

2 - stands for an inclineable table top. With just one hand lever
N-, S-, F-modells can be adjusted in height and inclination. »Example S
P-models have separat levers for height and inclination adjustment.
»Example P

3 - features the combination of one fixed plate (-1) with one or even two inclineable tops(-2)
»Example

4 - signals: divided desktop with front part inclining and second part remaining allways horizontal.
»Example

5 - with adjustable monitor rack under glass panel in desk top.
»Example

6 denotes a desk with monitor- and key board compartment. With the inclinable monitor mounting your screen can be pulled up and down. (optionally lockable).
»Example

7 & MC - Vertical lift desk with infinitely variable height adaptation. Two plates mounted - second plate aditionally with height and inclination adaptation.
»Example

8 - desktop with cut-out segment that holds a monitor tray in ergonomically optimized deep position for unhindered communication.
»Example

9 - reference numer for a desk with attached monitor compartement equiped with a vertical lift monitor mounting.
»Example

10 - refers to a cobination plates. The front plate allways horizontal and second plate inclining. »Example

The following Numbers, e.g. 47, 50, 68 etc. indicate the starting height (lowest) with flat desk top.

SDs

Quick-adjustment (direct)
- with a fixed weight balance through vertically mounted gas spring.

(The fixed weight balance can only be altered by mounting a different kind of gas spring.)

Si

Quick-adjustment indirectly working: weight balance can be regulated by the customer at any time.

You can alter the weight balance any time you like. For example ist you place objects or technical devices on your table - and again when you remove them.

Ks

Quick-action cranK
- height of desk is altered by turning a crank plugged in at the side edge of the desk top.

Kf

Quick-action cranK
- height of desk is altered by turning a crank plugged in at the front edge of the desk top.

E

Electric drive
- height of desk is altered by an electric drive with a control at the front edge of the desk top.

# = equipment reference number

4 castors for models S and P
360° swiveling - with breaks
(adjustable screw feet omitted for technical raeson) #01

4 castors for models M#
360° swiveling - with breaks
(adjustable screw feet omitted for technical raeson) #02

2 fixed wheels - lateral
plus 4 adjustable screw feet #04

2 fixed wheels - frontal
plus 4 adjustable screw feet #05

Stop rule - 5mm normal height
#10

Stop rule - 15 mm high
#11

# = equipment reference number

Stop bars on 3 sides
Elevation ca. 30 mm - with beveled edges#12

Steel top with 2 magnets
#13

Special stop rule
lateral guided (clamped on) #14

Pull-out Tool tray Anodized aluminium Lenth: 58cm, ca. 10 cm pull out. #15

Shelf for S/F/P-Models, light grey, ca. 60 x 30 cm
#20

Swivel tray (S & P desks) 30 x 20 cm or 25 x 15 cm including bracket
#80 to #84



# = equipment reference number

Safety device to lock inclinable table tops of ergo S and SZT    #21

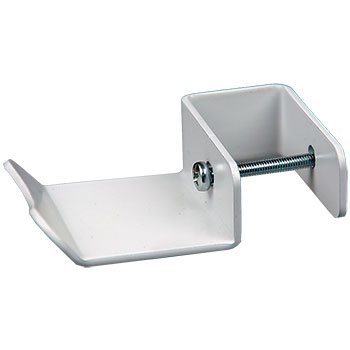

Bag holder for ergo S and P
#22

Bag holder for ergo M


Supplementary plate with circular cut for types ergo P2, M2, M10 with max. 70 cm depth of plate   #25

Supplementary plate with circular cut for Cebra table
#

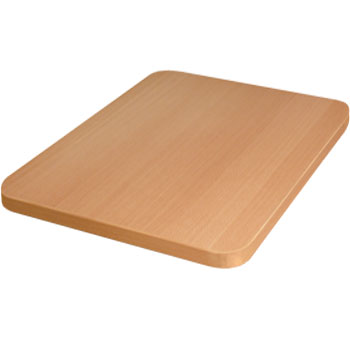

4 Rounded edges
on types ergo P3 or ergo M3
#30

Anti wedge brush - protects fingers from being caught between the plates of "3" models #33

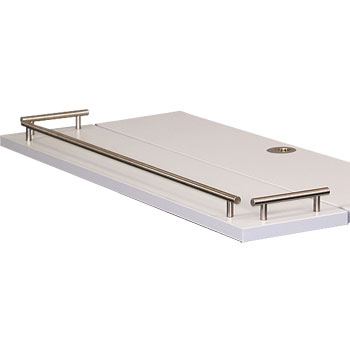

 Stainless steel rails for pc-to-go
 #35

Lock on Lid of hardware case
- with two keys

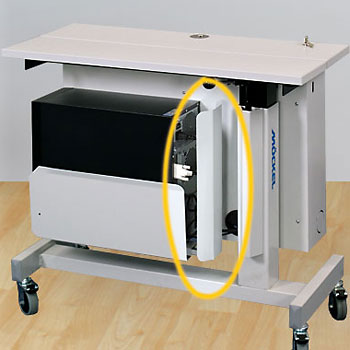

Cover to protect cables and sockets
at PC-to-go



# = equipment reference number

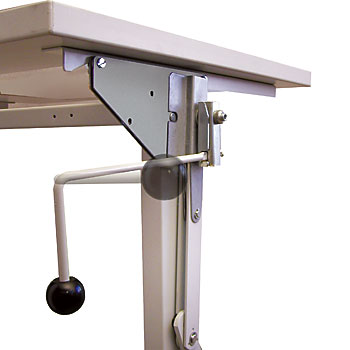

Easy handling of height adjustment for ergo S -opens and locks with a quater turn
  #35

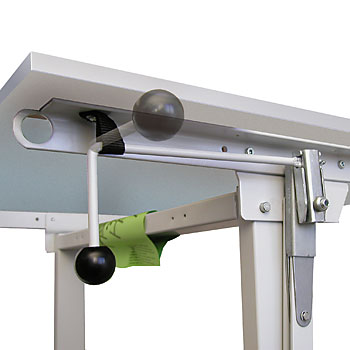

Easy handling of height adjustment for ergo P -opens and locks with a quater turn
  #36

Quick-action-crank (Ks) for height adaption from the side
#56

Quick-action-crank frontal (Kf) for height adaption from table front
#57

Electric Drive for height adaption
#58

Colour of rack: black
#50



# = equipment reference number

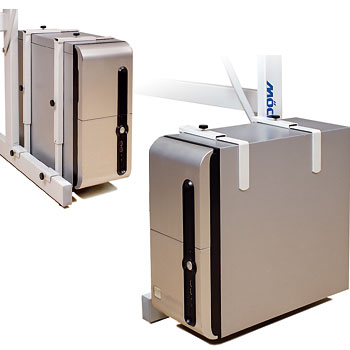

PC-Tray "A" - grey, adjustable in width from 110 to 195 mm

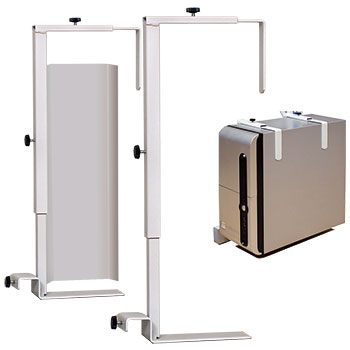

PC-Tray "B" - grey, adjustable from 110 to 195 mm - cable and plug protection on back

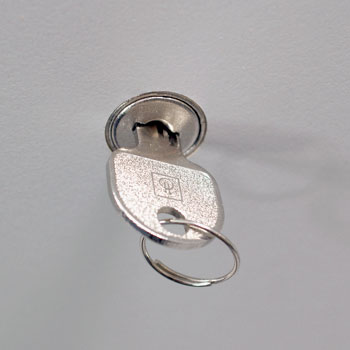

Lock with two keys

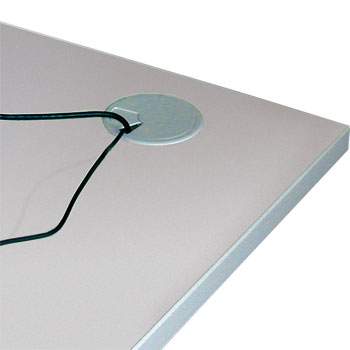

Cable pass through -going through plate. Colour: grey
 #60

Cable tray / wire basket, grey (horizontal cable routing)
 #61

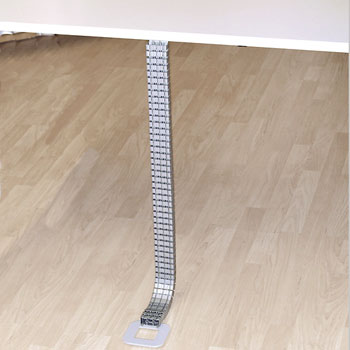

Vertical cable guiding, grey
#62

Cable clip
#64

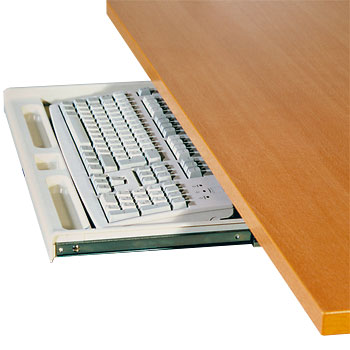

Keyboard pull-out - roller bearing guided
(Not possible with circular cut in panel)



# = equipment reference number

Optional Colours for Moeckel desks
(RAL*-Colour scheme) #51

2001 Red orange · 3000 Flame red · 3003 Ruby red · 3004 Purpel red** · 3020 Traffic red · 5010 Gentian blue · 5012 Light blue · 5015 Sky blue · 5023 Distant blue · 6024 Traffic green · 6029 Mint green · 7016 Anthracit grey · 7021 Black grey · 7024 Graphite grey · 7043 Traffic grey B · 9006 White aluminium · 9016 Traffic white

*Please look up the actual Colour on a RAL-Colour chart.

7035 Light grey is the standard colour free of extra charge.
**3004 Purple red is standard for „Skater“.
Black is can be chosen as standard colour at some models (M). The lifting frame, the moving part of the lift, is always black.

 »RAL Colours

Fixed aluminium tool tray
on total length of board

Mounting extension
for MAG/K, LX-3, LX-2 drafting machines
(right hand versions only)

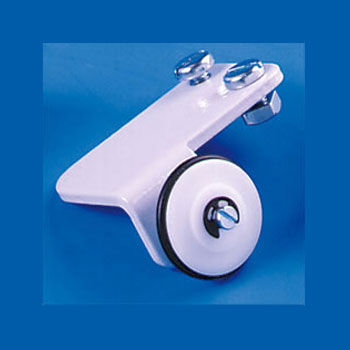

Additional track end wheel for LX-3

Magtainer  Steel cabinet for storage of MAG/K or LX-3 drafting machines

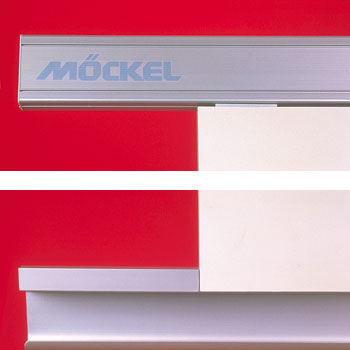

Track extension for LW-1 with elongated horizontal track and tool tray

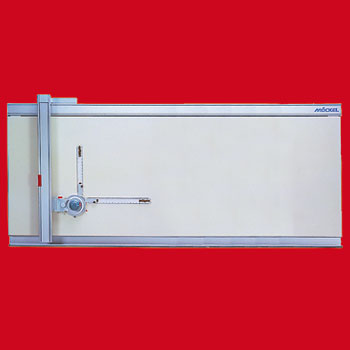

Special Sizes for LW-1 as customized production is possible

Drafting machines
- in accordance to board size



»Catalog "Articulated lift desks"

PDF - File aize 14 MB (German language)



»Moeckel ergo price list

»Prices Moeckel drafting devices

(German language)



Mounting board at ergo S + F [PDF german/english]

Safety device for ergo S [PDF german-with pictures]

Alteration ergo SR to ergo S



Crank adjustment vs. Quick adjustment MP4

PC-Tray type A [PDF]
