Product overview

Product features

Infinitely variable table heights
ergo M3 50R - from ca. 50 to 75 cm
- 25 cm stroke
M3 68R - 68 to 112 cm - 44 cm stroke
M3 72R - 72 to 120 cm - 48 cm stroke(Tolerance in stroke +/- 10 mm)
Stepless inclination of top from 0° to 85° - or eveb two tops. Sturdy desk-top positions - easy handling. Variations of designs see »2nd chart.
Quick adjustment (S-drive) one hand lever opens and locks the height adjustment optionally with quick-action-crank (K-drive) or electric powered adjustment (E-drive)
Height adjustment over double-chain drive - no accidental declining of desk top, smooth run with ball bearings
Total weight balance for table top - can be regulated* up to 60 pound, depending on size of board or hardware - easy handling with crank* (* not with 60 cm rack)
Space between feet of rack: 60*, 81, 108 or 142 cm - depending on size of table
Rack powder-coated, light-grey RAL 7035 - lifting frame is black RAL 9005
Table sizes see chart below
Decor of plate: gray or beech décor
4 adjustable screw feet, for uneven grounds - castors optional see »Equipment

Suitable for use with wheelchair

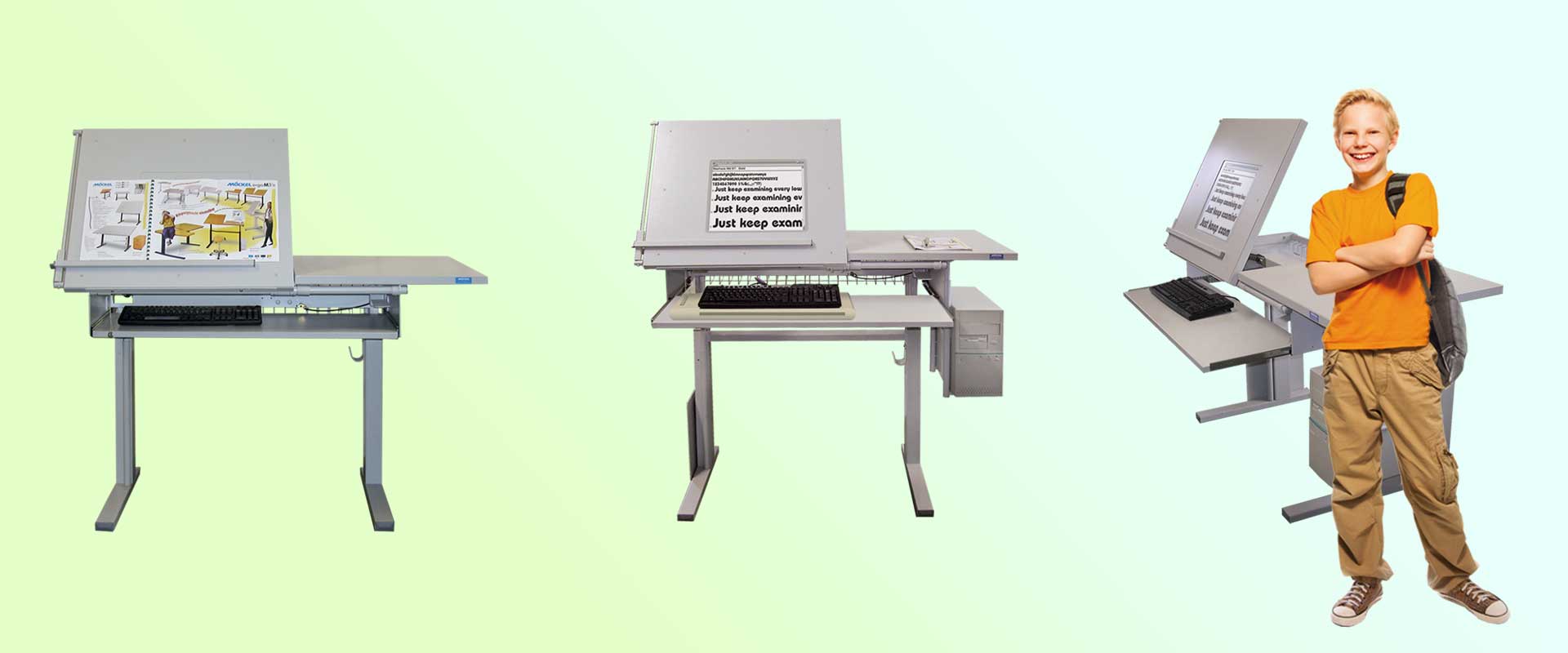

ergo M3 R is the ultimat multifunctional table with infintely adjustable height, smooth running and one or two separatly inclineable table tops.

Top functions for optimal ergonomic adjustment to any work situation.

A "tool" for creative minds
The ergo M3 is a true sit-stand table that gives back some of the action the muscles and discs need.

The desk for creative people

Aditional to its use as a comfortable sit-stand desk one or even two tops can be inclined for craetive work and one plate stays fixed for the untensils at hand.

All functions are easy to adjust.

["R" means: is suitable for use with wheelchairs]

4 castors for models M#
360° swiveling - with breaks
(adjustable screw feet omitted for technical raeson)

2 fixed wheels - lateral
plus 4 adjustable screw feet

Stop rule - 5mm normal height

Pull-out Tool tray Anodized aluminium Lenth: 58cm, ca. 10 cm pull out. #15

Stop bars on 3 sides
Elevation ca. 30 mm - with beveled edges#12

Special stop rule
lateral guided (clamped on)

Quick-action-crank (Ks) for height adaption from the side

Quick-action-crank frontal (Kf) for height adaption from table front

Electric Drive for height adaption

farben-moeckel-tische" Optional Colours for Moeckel desks
(RAL*-Colour scheme)

2001 Red orange · 3000 Flame red · 3003 Ruby red · 3004 Purpel red** · 3020 Traffic red · 5010 Gentian blue · 5012 Light blue · 5015 Sky blue · 5023 Distant blue · 6024 Traffic green · 6029 Mint green · 7016 Anthracit grey · 7021 Black grey · 7024 Graphite grey · 7043 Traffic grey B · 9006 White aluminium · 9016 Traffic white

7035 Light grey is the standard colour free of extra charge.

Childrens desk ergo M3 50 R

Product features

Suitable for use with wheelchair

The desk for creative people

Selected item:

Optional equipment:

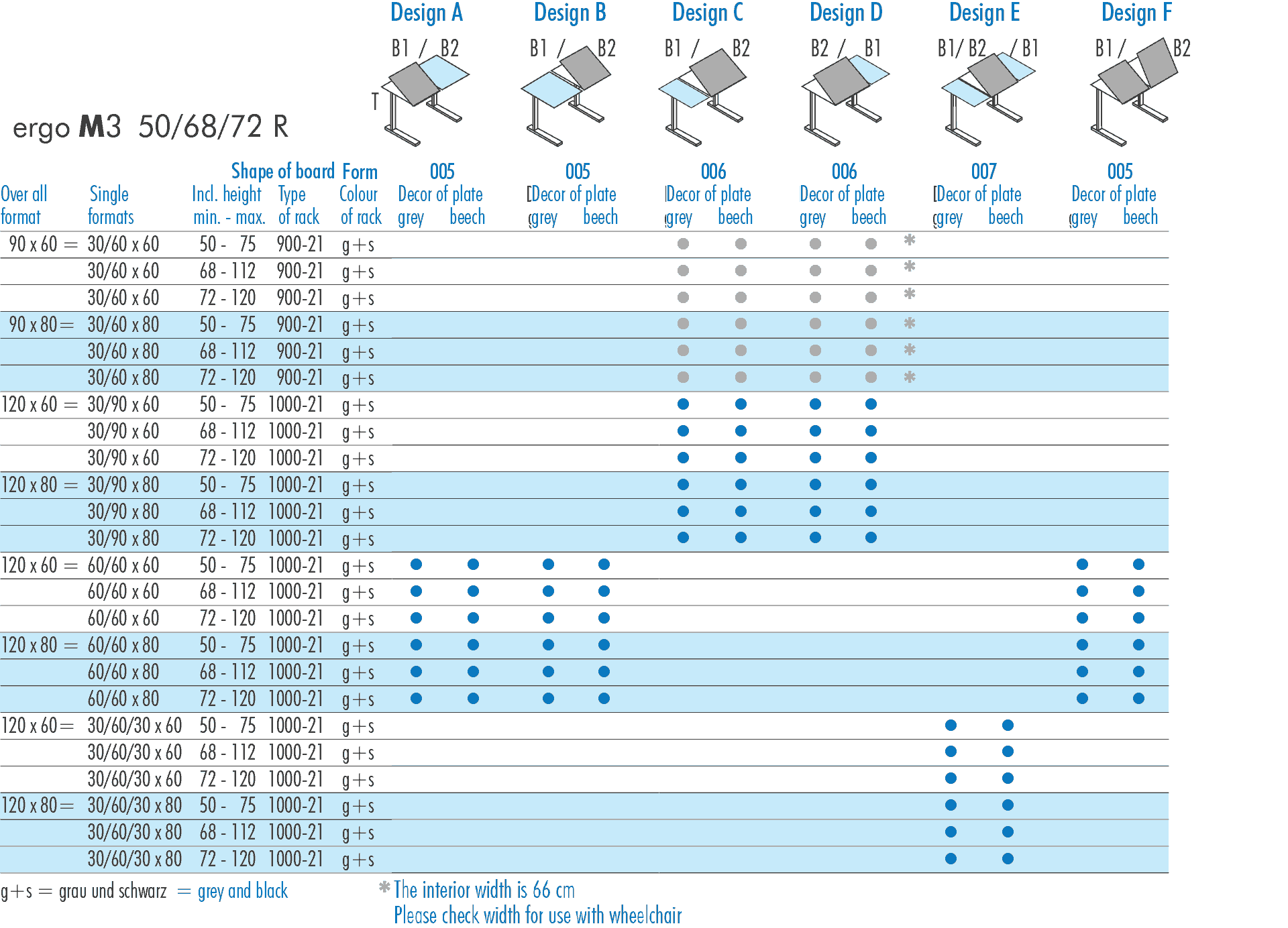

Table sizes and designs

Plates and formats of designs A to F
