Height & inclination adjustable desk ergo M2

Product features

  • Infinitely variable table heights
    ergo M2 50 - from ca. 50 to 75 cm - 25 cm stroke (Childrens table)
    ergo M2 68 - from ca. 68 to 112 cm - 44 cm stroke
    ergo M2 72 - from ca. 72 to 120 cm - 48 cm stroke (optional)
  • Stepless inclination of top from 0° to 85° - sturdy desk-top positions - easy handling
  • Quick adjustment (S) one hand lever opens and locks the height adjustment. Optionally with quick-action-crank (K) or electric powered adjustment (E).
  • Height adjustment over double-chain drive - no accidental declining of desk top, smooth run with ball bearings.
  • Total weight balance for table top - can be regulated* up to 60 pound, depending on size of board or hardware - easy handling with crank* (* not with 60 cm rack)
  • Space between feet of rack: 60*, 81, 108 or 142 cm - depending on size of table
  • Table sizes see chart below
  • Decor of plate: gray or beech décor
  • Rack powder-coated, light grey - RAL 7035 or black. The lifting frame is always black - RAL 9005
  • 4 adjustable screw feet, for uneven grounds - castors optional - see »Equipment

ergo M2 50, 68 or 72
Sit stand-on table



Quick adjustment for easy changing working positiones - for better health.
The ergo M2 is a true sit-stand table that gives back some of the action the muscles and discs need.

Smooth and save all items and hardware glide up and down.

The ergo M2 is offered with three starting heights: 50 cm as a children's table, 68 cm is the normal height and optionally with 72 cm.

Please see also: ergo M2 R
(suitable for use with wheelchair)

hoehen- und neigungsverstellbarer tisch

For creative people

Besides the smooth gliding elevation of the table top the M2's additional feature is a quick and easy inclination of table top.For creative moments as drawing or drafting table.
hoehen- und neigungsverstellbarer zeichentisch
For use with all MOECKEL drafting machines.
hoehen- und neigungsverstellbarer tisch

Selected item:

selected

Optional equipment:

castors 4 castors for models M
360° swiveling - with breaks
(adjustable screw feet omitted for technical raeson)
2 fixed wheels2 fixed wheels - lateral
plus 4 adjustable screw feet
Stop ruleStop rule - 5mm normal height

Bag holderBag holder for ergo M

Stop bars on 3 sidesStop bars on 3 sides
Elevation ca. 30 mm - with beveled edges
Steel topSteel top with 2 magnets

Special stop ruleSpecial stop rule
lateral guided (clamped on)



Quick-action-crankQuick-action-crank (Ks) for height adaption from the side
Quick-action-crankQuick-action-crank frontal (Kf) for height adaption from table front
Electric DriveElectric Drive for height adaption

farben-moeckel-tische"Optional Colours for Moeckel desks (RAL*-Colour scheme)

2001 Red orange · 3000 Flame red · 3003 Ruby red · 3004 Purpel red** · 3020 Traffic red · 5010 Gentian blue · 5012 Light blue · 5015 Sky blue · 5023 Distant blue · 6024 Traffic green · 6029 Mint green · 7016 Anthracit grey · 7021 Black grey · 7024 Graphite grey · 7043 Traffic grey B · 9006 White aluminium · 9016 Traffic white

*Please look up the actual Colour on a RAL-Colour chart.

7035 Light grey is the standard colour free of extra charge. Black is can be chosen as standard colour at some models (M). The lifting frame, the moving part of the lift, is always black.

Selected item

selected image

Drafting equipment

Drafting machineDrafting machines types ZK / ZG - in accordance to board size - »Drafting gear
Fixed aluminium tool trayFixed aluminium tool tray - on total length of board

Mounting extensionMounting extension for MAG/K, LX-3, LX-2 drafting machines right hand versions only)

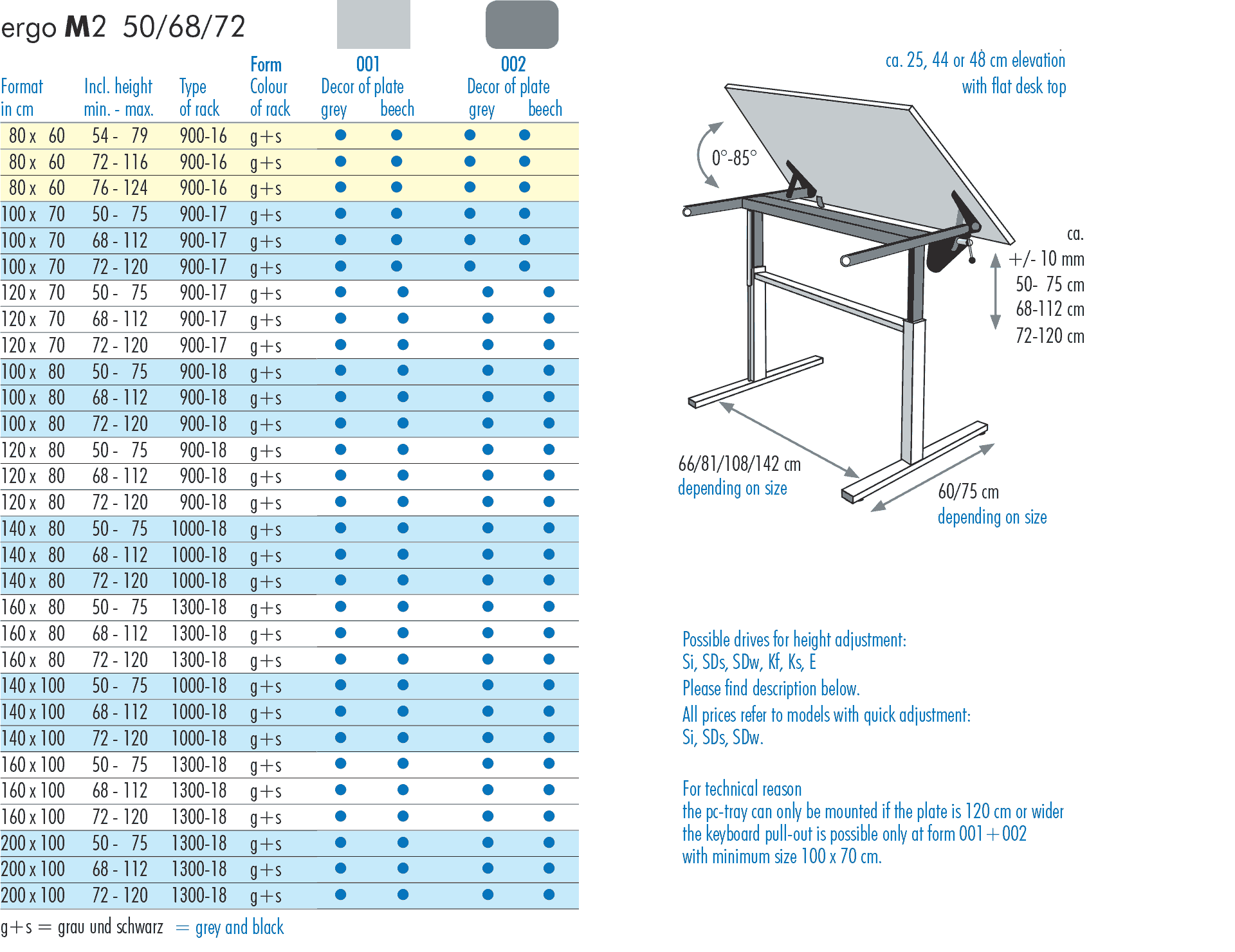

Table sizes and designs

table sizes
