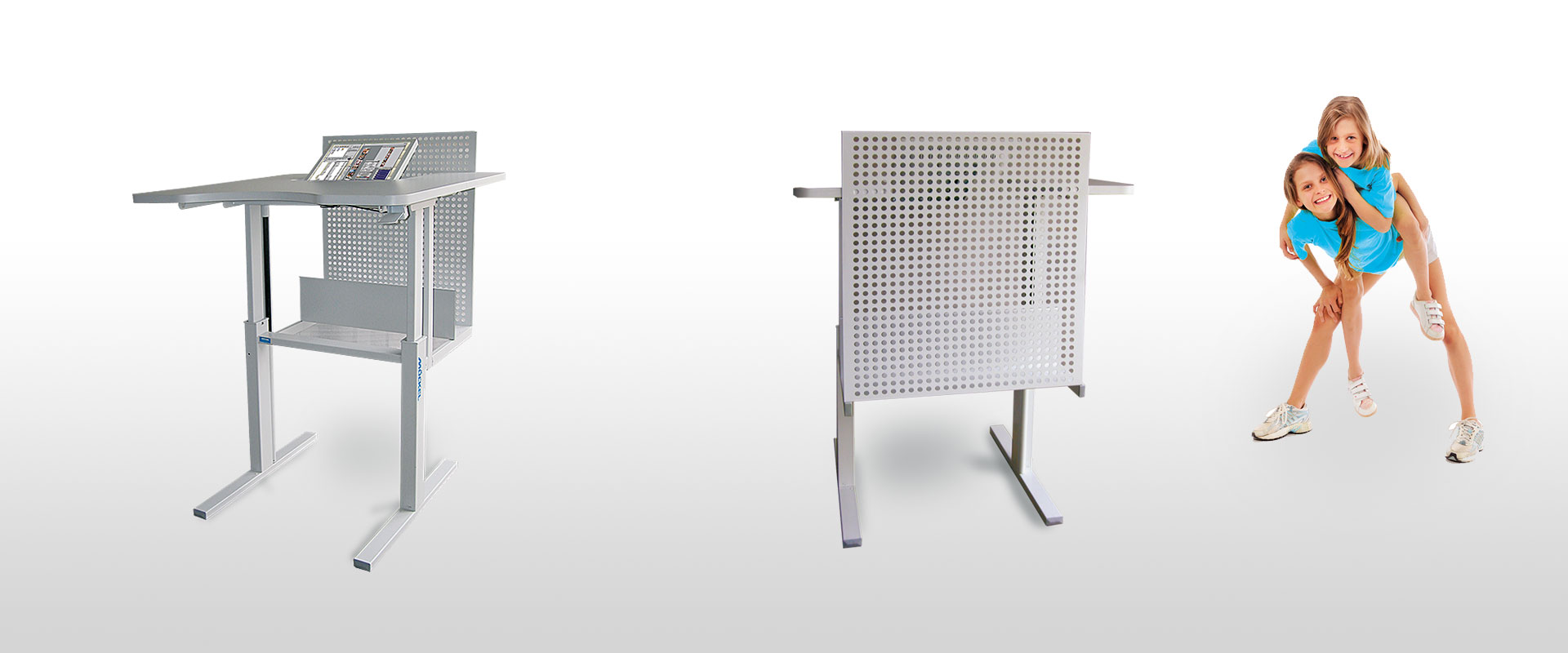

Height adjustable school desk - ergo M8 go on

Product features

  • ergo M8 68 - from ca. 68 to 112 cm - 44 cm stroke
    ergo M8 72 - from ca. 72 to 120 cm - 48 cm stroke (optional)
  • Quick adjustment (S) one hand lever opens and locks the height adjustment. Optionally with quick-action-crank (K) or electric powered adjustment (E).
  • Monitor bracket separately adjustable from 0 to -3,5 cm (1,38") in relation to table top additionally adjustable in angle (for view) from 0 to 90°
  • Space between feet of rack: 60 cm
  • Rack powder-coated, light-grey (RAL 7035) - the elevating structure is black (RAL 9005)
  • Table sizes see chart below
  • Decor of plate: gray or beech décor
  • 4 adjustable screw feet, for uneven grounds - castors optional - see »Equipment

IT, school or information-desk with lowered monitor bracket

The ergo M8 is designed for comfortable working in sit-stand positions on small space.

A separately adjustable monitor mounting gives you an optimal view on the lowered screen plus free view for better communication.

The circular cut optimizes our ergonomic concept.

hoehen- und neigungsverstellbarer tisch
nach oben - to top

Stepless height adjustment

Ideal for seminaries, schooling and training workshops, as PC-desk or info-terminal.

Sit-stand desk with small demand of space.

hoehen- und neigungsverstellbarer tisch

Selected item:

selected item

Optional equipment:

castors 4 castors for models M
360° swiveling - with breaks
(adjustable screw feet omitted for technical raeson)
2 fixed wheels2 fixed wheels - lateral
plus 4 adjustable screw feet
swivel traySwivel tray (S & P desks) 30 x 20 cm or 25 x 15 cm including bracket

Cable pass throughCable pass through -going through plate. Colour: grey

PC-Tray for S and PPC-Tray "A" - grey, for S and P,
adjustable in width from 110 to 195 mm
PC-Tray for S and PPC-Tray "B" - grey, for S and P,
adjustable from 110 to 195 mm
Cable and plug protection on back
nach oben - to top

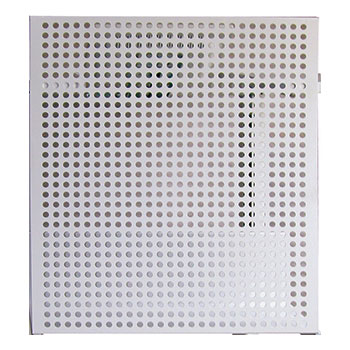

Lochblech SichtblendePrivacy panel / perforated sheet
- various sizes
Quick-action-crankQuick-action-crank (Ks) for height adaption from the side
Quick-action-crankQuick-action-crank frontal (Kf) for height adaption from table front
Electric DriveElectric Drive for height adaption

farben-moeckel-tische"Optional Colours for Moeckel desks (RAL*-Colour scheme)

2001 Red orange · 3000 Flame red · 3003 Ruby red · 3004 Purpel red** · 3020 Traffic red · 5010 Gentian blue · 5012 Light blue · 5015 Sky blue · 5023 Distant blue · 6024 Traffic green · 6029 Mint green · 7016 Anthracit grey · 7021 Black grey · 7024 Graphite grey · 7043 Traffic grey B · 9006 White aluminium · 9016 Traffic white

*Please look up the actual Colour on a RAL-Colour chart.

7035 Light grey is the standard colour free of extra charge. Black is can be chosen as standard colour at some models (M). The lifting frame, the moving part of the lift, is always black.

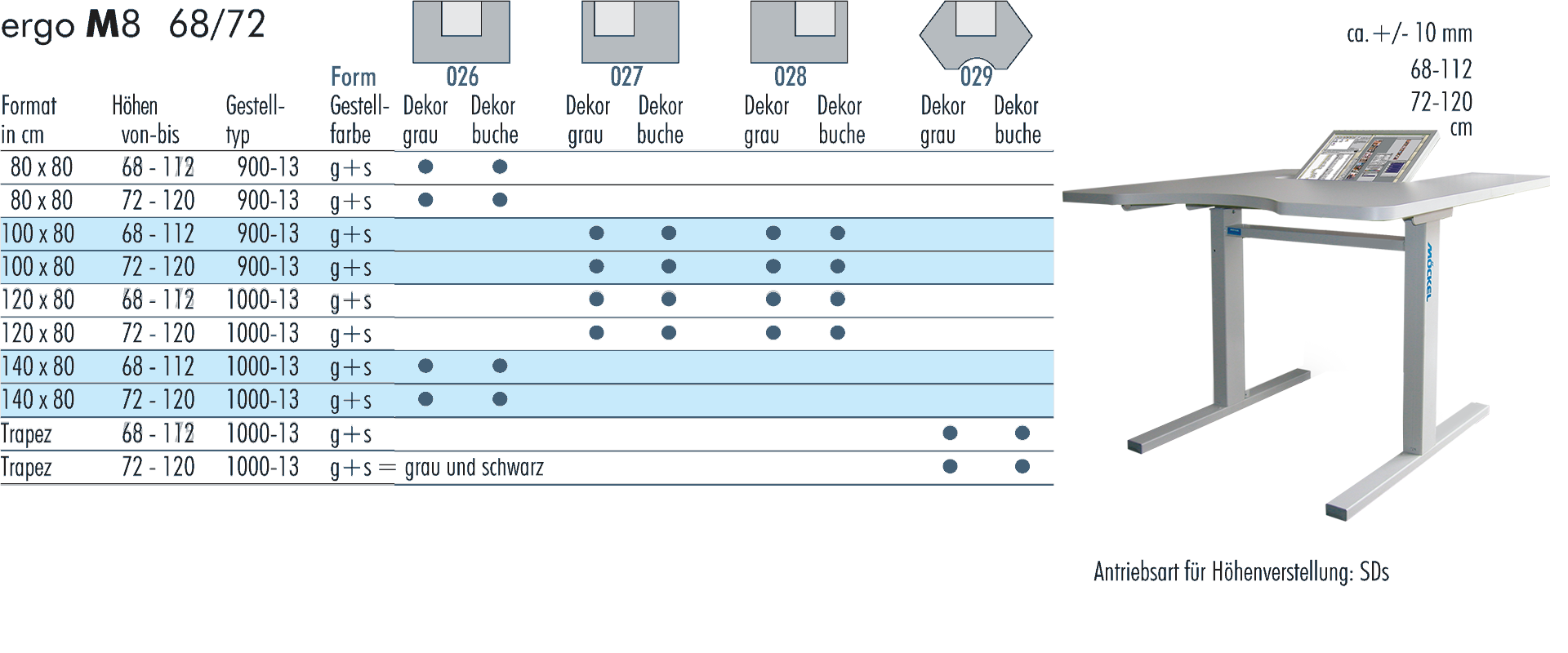

Table sizes and designs

table sizes
