Height adjustable school desk - ergo M6 go on

Product features

  • Infinitely variable table heights
    ergo M2 50 - from ca. 50 to 75 cm - 25 cm stroke (Childrens table)
    ergo M2 68 - from ca. 68 to 112 cm - 44 cm stroke
    ergo M2 72 - from ca. 72 to 120 cm - 48 cm stroke (optional)
  • Quick adjustment (S) one hand lever opens and locks the height adjustment. Optionally with quick-action-crank (K) or electric powered adjustment (E).

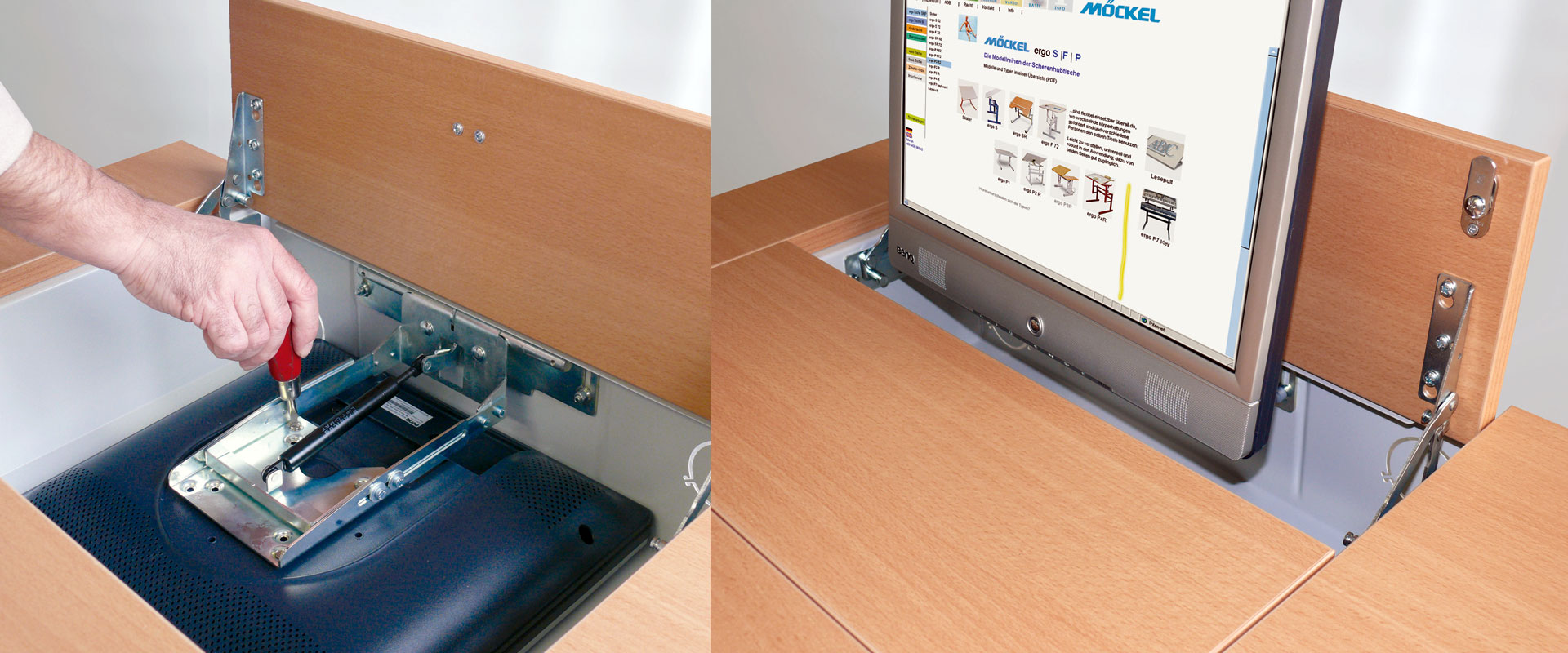

  • Lockable monitor- and keyboard compartment.
  • Inclinable monitor mounting - for optimal angle of view
  • Space between feet of rack: 60 cm
  • Rack powder-coated, light-grey (RAL 7035) - the elevating structure is black (RAL 9005)
  • Table sizes see chart below
  • Decor of plate: gray or beech décor
  • 4 adjustable screw feet, for uneven grounds - castors optional - see »Equipment

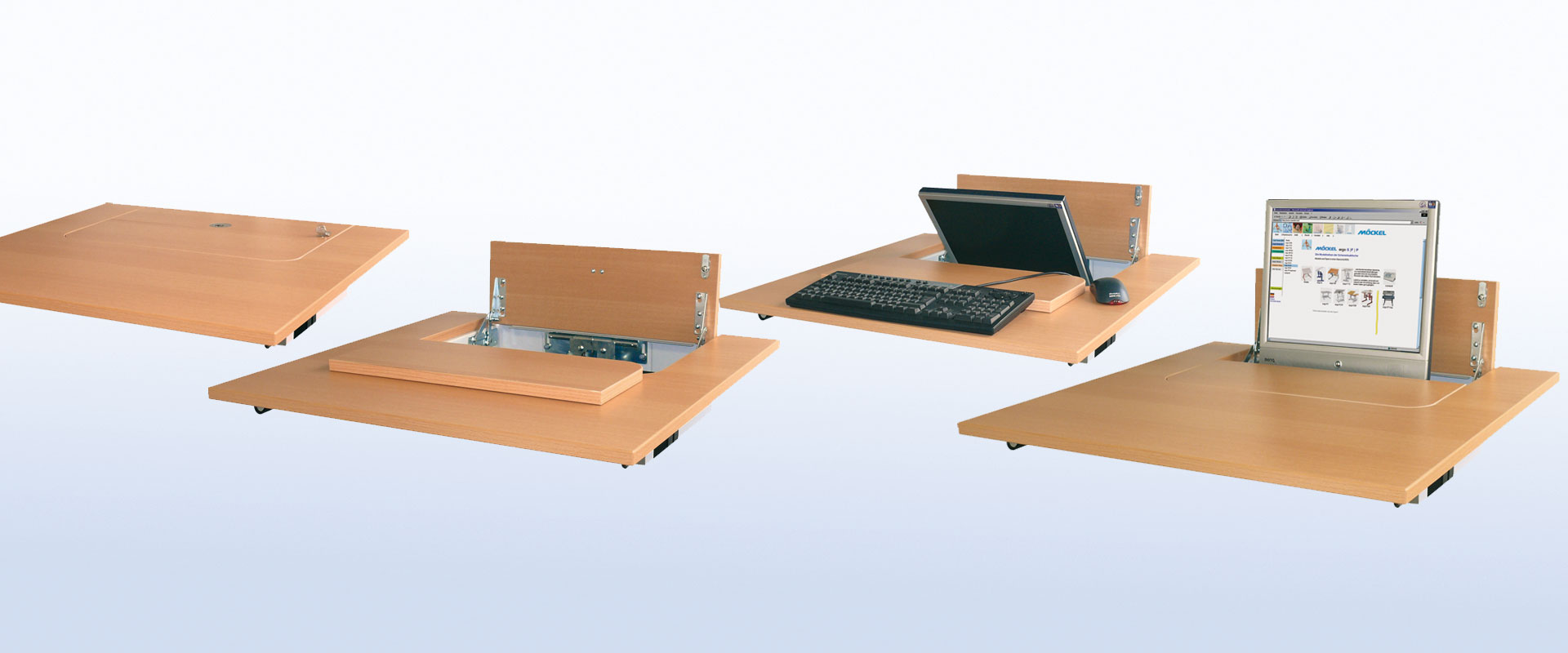

Ergonomically optimized - secure hardware compartment.

ergo M 6 is a "multi tasking" versatile desk for EDP and schooling. Needing only little space it offers comfortable working with full sit and stand on function. It can be adapted to different forms of use in no time.

Matching any persons height it also encloses all hardware.

Smooth and save all items and hardware glide up and down. The ergo M6 is offered with three starting heights: 50, 68 or 72 cm

Sitz-Steh-EDV-Tisch M5
nach oben - to top

Stepless height adjustment

Ideal for seminaries, schooling and training workshops, as PC-desk or info-terminal.

Sit-stand desk with small demand of space.

Sitz-Steh-EDV-Tisch M5

Selected item:

selected item

Optional equipment:

castors 4 castors for models M
360° swiveling - with breaks
(adjustable screw feet omitted for technical raeson)
2 fixed wheels2 fixed wheels - lateral
plus 4 adjustable screw feet
swivel traySwivel tray (S & P desks) 30 x 20 cm or 25 x 15 cm including bracket

Cable pass throughCable pass through -going through plate. Colour: grey

PC-Tray for S and PPC-Tray "A" - grey, for S and P,
adjustable in width from 110 to 195 mm
PC-Tray for S and PPC-Tray "B" - grey, for S and P,
adjustable from 110 to 195 mm
Cable and plug protection on back
nach oben - to top



Quick-action-crankQuick-action-crank (Ks) for height adaption from the side
Quick-action-crankQuick-action-crank frontal (Kf) for height adaption from table front
Electric DriveElectric Drive for height adaption

farben-moeckel-tische"Optional Colours for Moeckel desks (RAL*-Colour scheme)

2001 Red orange · 3000 Flame red · 3003 Ruby red · 3004 Purpel red** · 3020 Traffic red · 5010 Gentian blue · 5012 Light blue · 5015 Sky blue · 5023 Distant blue · 6024 Traffic green · 6029 Mint green · 7016 Anthracit grey · 7021 Black grey · 7024 Graphite grey · 7043 Traffic grey B · 9006 White aluminium · 9016 Traffic white

*Please look up the actual Colour on a RAL-Colour chart.

7035 Light grey is the standard colour free of extra charge. Black is can be chosen as standard colour at some models (M). The lifting frame, the moving part of the lift, is always black.

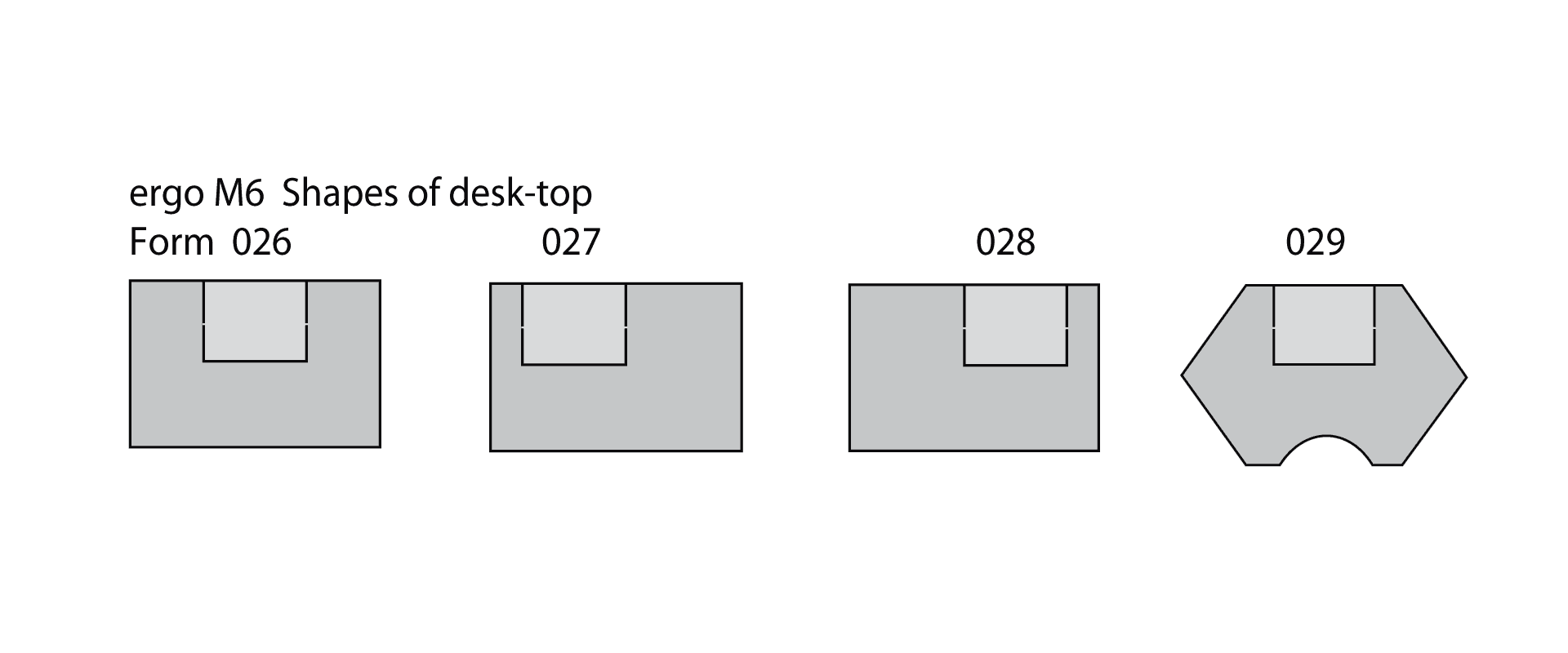

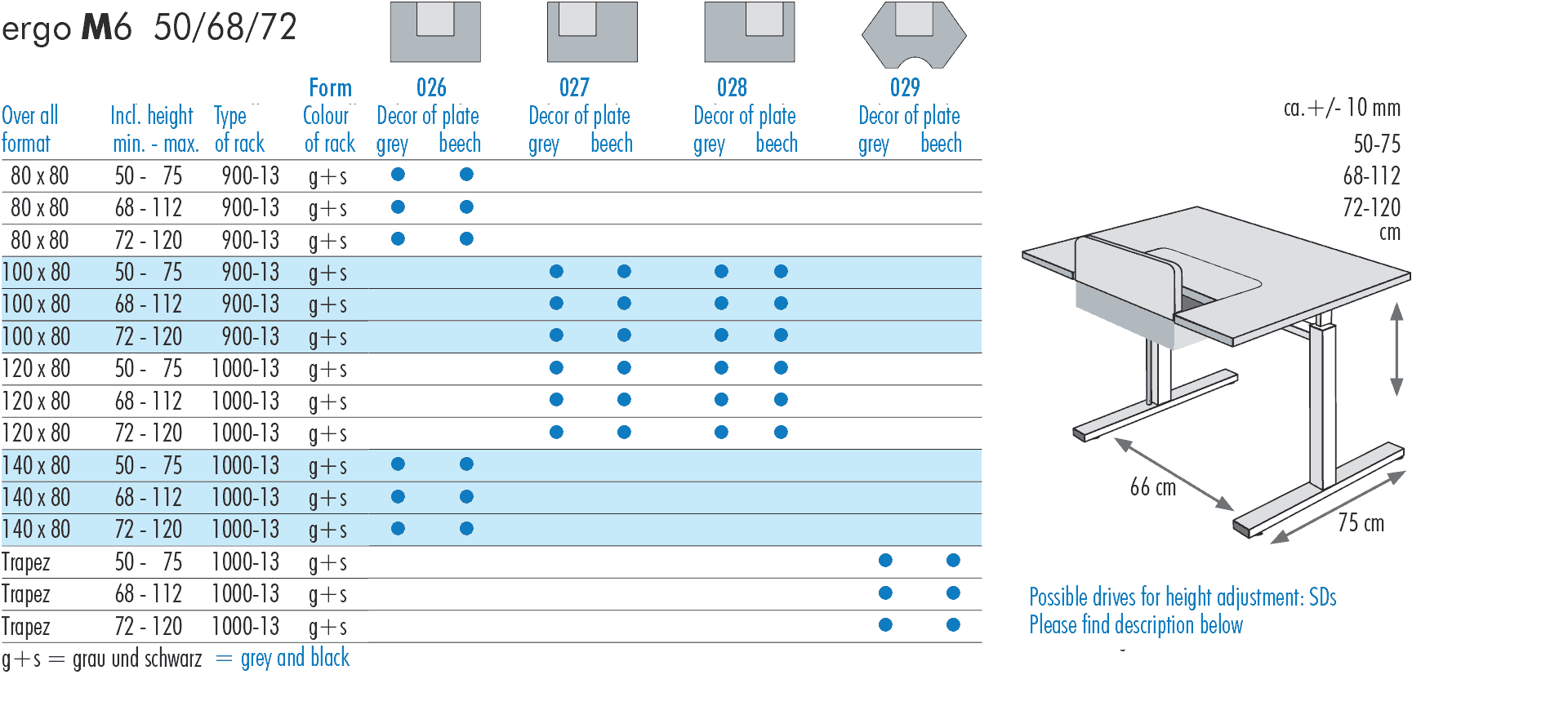

Table sizes and designs

table sizes

Service Hotline

Telephone support and advice:

+49 6408 9004 0

Mo-Fr, 09:00 - 12:00 and 14:00 - 17:00 h

Decorations are never part of deliverd items.
