Möckel Feinmechanik

Sit & stand-on desk ergo MC go on

Product features

  • Infinitely adjustable table heights:
    ergo M1 50 - from ca. 50 to 75 cm - 25 cm stroke (Childrens table)
    ergo M1 68 - from ca. 68 to 112 cm - 44 cm stroke
    ergo M1 72 - from ca. 72 to 120 cm - 48 cm stroke (optional)
  • Quick adjustment (S) one hand lever opens and locks the height adjustment. Optionally with quick-action-crank (K) or electric powered adjustment (E).
  • Height adjustment smooth running with ball bearings. No accidental declining.
  • The front table top is fixed, ie. without inclination of plate.
  • Plate of monitor level adjustable by increments of 28 mm in height from 0 to -25 cm to the level of the worktop.
  • Plus: Monitor panel has infinitely adjustable tilt angle of +5° to -20 ° in relation to flat desk top
  • Balanced counterweight for table top - can be regulated up to 60 pound, depending on size of board or hardware - easy handling with crank.
  • Space between feet of rack: 81, 108 or 142 cm - depending on size of table.
  • Table sizes see chart below
  • Decor of plate: gray or beech décor
  • Rack powder-coated, light grey - RAL 7035 or black. The lifting frame is always black - RAL 9005
  • 4 adjustable screw feet, for uneven grounds - castors optional - see »Equipment

Two desk top levels

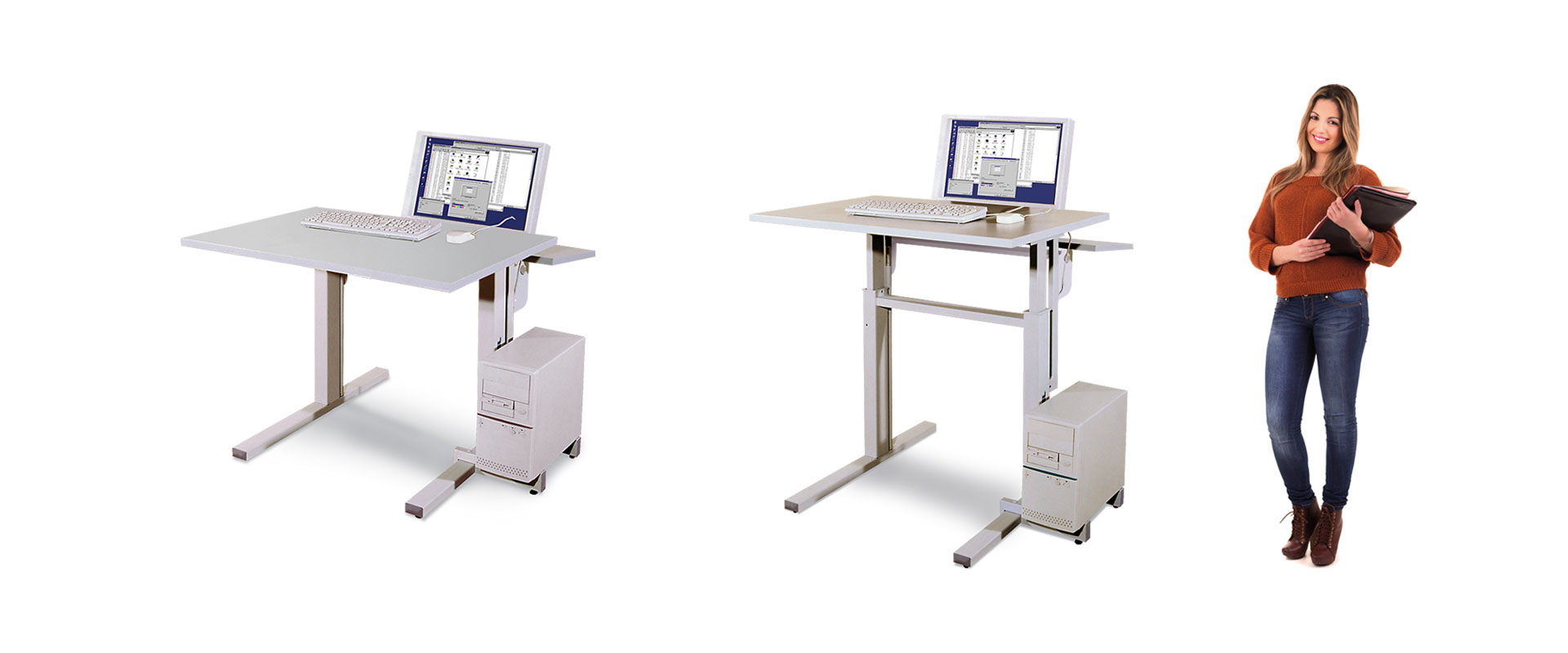

The Moeckel Sit Stand-on desk ergo MC is an easy height adjustable table with two plates .

The rear plate is designed as separatly adjustable monitor level.

Smooth and save all items and hardware glide up and down. The ergo M6 is offered with three starting heights: 50, 68 or 72 cm.

hoehen- und neigungsverstellbarer tisch
nach oben - to top

Sit stand-on office desk

The MC-series offers a separatly adjustable second table top for monitors and other devices that is adjusted in steps of 28 mm.

hoehen- und neigungsverstellbarer tisch

Other models of the MC-series:

ergo MC R (R = suitable for wheelchairs)
ergo MC 3 - with inclining and fixed plate

Selected item:

ergo M3
nach oben - to top

Optional equipment:

castors 4 castors for models M
360° swiveling - with breaks
(adjustable screw feet omitted for technical raeson)
PC-Tray for S and PPC-Tray "A" - grey, adjustable in width from 110 to 195 mm
Cable trayCable tray / wire basket, grey (horizontal cable routing)

Vertical cable guidingVertical cable guiding, grey

Cable pass throughCable pass through - going through plate. Colour: grey

Quick-action-crankQuick-action-crank (Ks) for height adaption from the side
Quick-action-crankQuick-action-crank frontal (Kf) for height adaption from table front
Electric DriveElectric Drive for height adaption


farben-moeckel-tische"Optional Colours for Moeckel desks (RAL*-Colour scheme)

2001 Red orange · 3000 Flame red · 3003 Ruby red · 3004 Purpel red** · 3020 Traffic red · 5010 Gentian blue · 5012 Light blue · 5015 Sky blue · 5023 Distant blue · 6024 Traffic green · 6029 Mint green · 7016 Anthracit grey · 7021 Black grey · 7024 Graphite grey · 7043 Traffic grey B · 9006 White aluminium · 9016 Traffic white

*Please look up the actual Colour on a RAL-Colour chart.

7035 Light grey is the standard colour free of extra charge. Black is can be chosen as standard colour at some models (M). The lifting frame, the moving part of the lift, is always black.

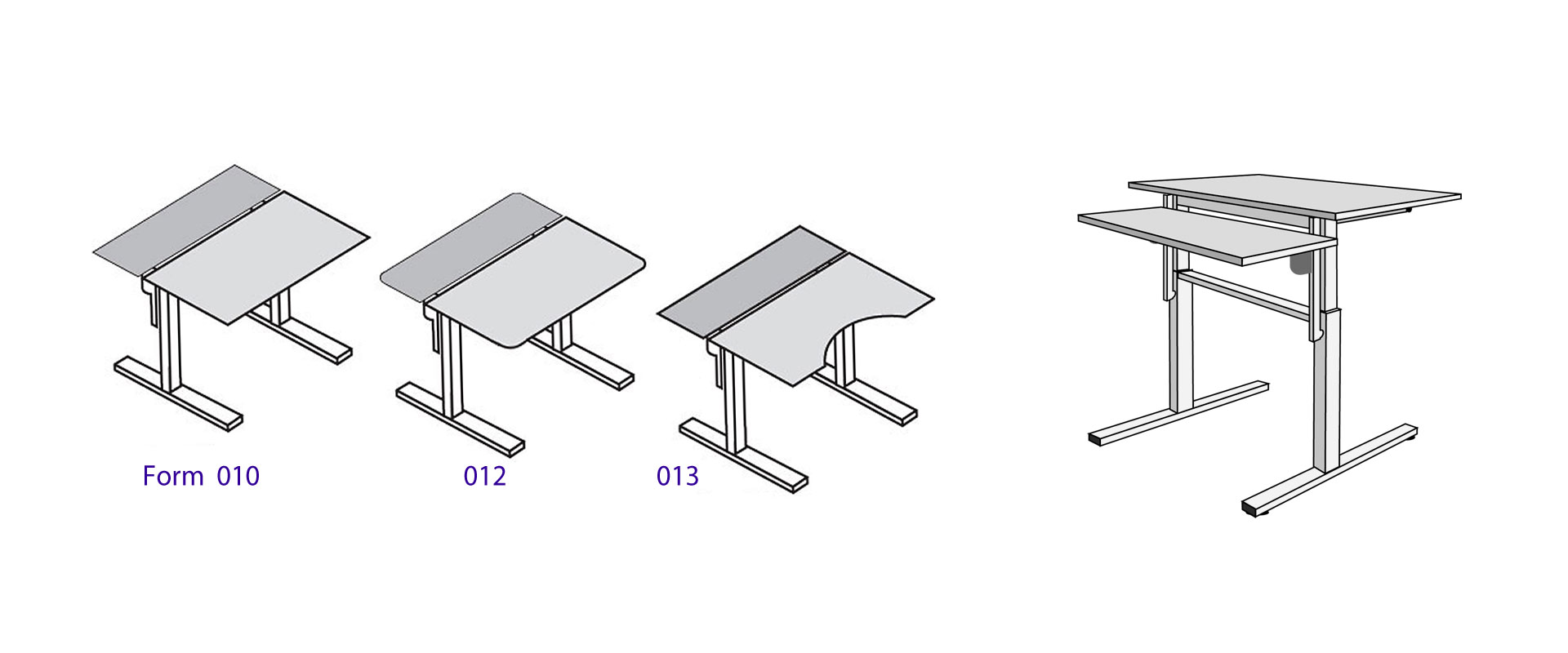

Table sizes and designs

table sizes
