Height & inclination adjustable desk ergo MC 3

Product features ergo MC 3

  • Infinitely adjustable table heights:
    ergo M1 68 - from ca. 68 to 112 cm - 44 cm stroke
    ergo M1 72 - from ca. 72 to 120 cm - 48 cm stroke (optional)
  • Quick adjustment (S) one hand lever opens and locks the height adjustment. Optionally with quick-action-crank (K) or electric powered adjustment (E).
  • Height adjustment smooth running with ball bearings. No accidental declining.
  • Stepless inclination of the first plate (1) from 0° to 85° - counterbalanced with gas spring - can be set back from any position.
  • Second plate fixed to the right (2)
  • Plate (3) of monitor level adjustable by increments of 28 mm in height from 0 to -25 cm to the level of the worktop.
  • Plus: Monitor panel has infinitely adjustable tilt angle of +5° to -20 ° - in relation to flat desk top
  • Balanced counterweight for table top - can be regulated up to 60 pound, depending on size of board or hardware - easy handling with crank.
  • Space between feet of rack: 108 or 142 cm - depending on size of table.
  • Table sizes: 100 x 80/40 cm
    and 120 x 80/40 cm
  • Decor of plate: gray or beech décor
  • Rack powder-coated, light grey - RAL 7035 or black. The lifting frame is always black - RAL 9005
  • 4 adjustable screw feet, for uneven grounds - castors optional - see »Equipment

Two desk top levels

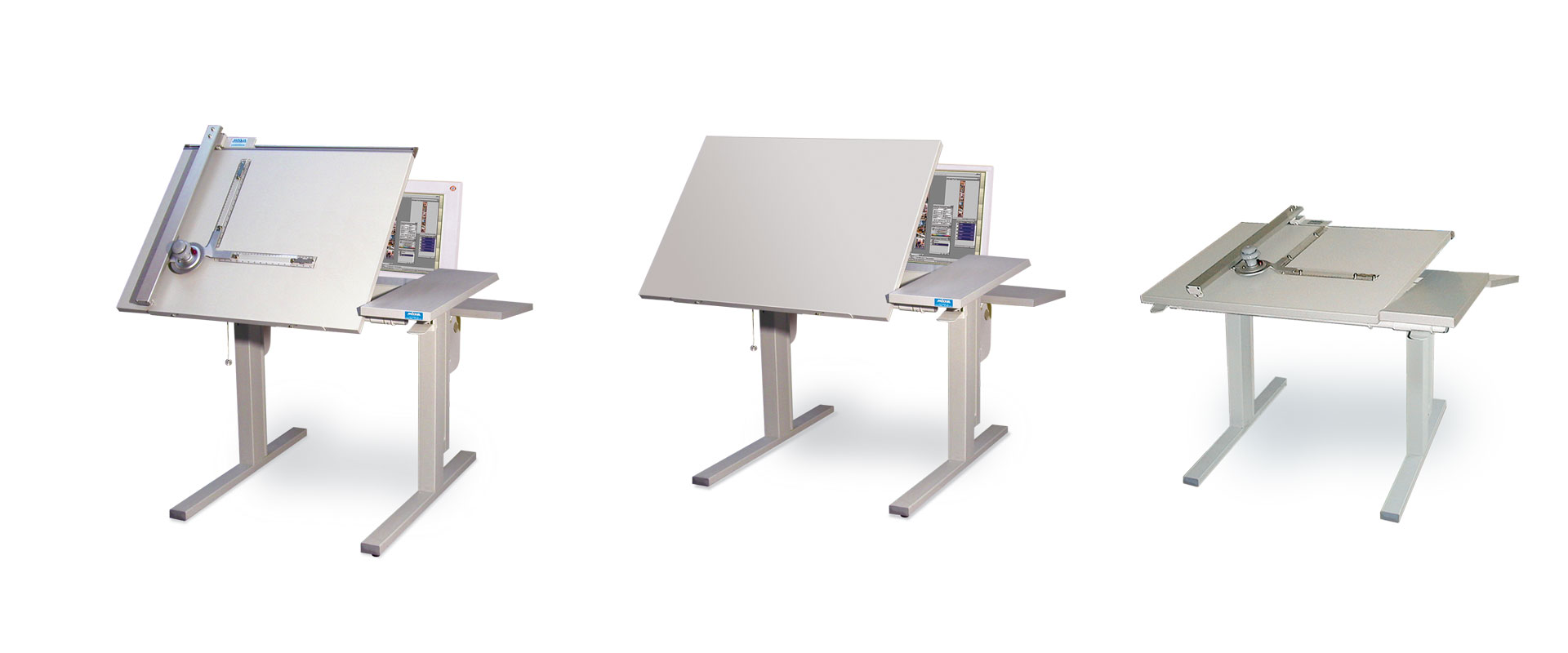

The Moeckel Sit Stand-on desk ergo MC 3 is an easy height adjustable table with two plates.

The front plate is inclinable - the rear plate is a separatly adjustable monitor level.

Smooth and save all items and hardware glide up and down. The ergo MC 3 is offered with two starting heights: 68 or 72 cm.


hoehen- und neigungsverstellbarer tisch

The desk for professionals

"Work station" for professional CAD.

The MC 3 offers a separatly adjustable second table top for monitors and other devices.

hoehen- und neigungsverstellbarer tisch

Other models of the MC-series:

ergo MC
ergo MC R (R = suitable for wheelchairs)

Selected item:

ergo M3

Optional equipment:

castors 4 castors for models M
360° swiveling - with breaks
(adjustable screw feet omitted for technical raeson)
PC-Tray for S and PPC-Tray "A" - grey, adjustable in width from 110 to 195 mm
Cable trayCable tray / wire basket, grey (horizontal cable routing)

Vertical cable guidingVertical cable guiding, grey


Cable pass throughCable pass through - going through plate. Colour: grey



anti wedge brushAnti wedge brush - protects fingers from being caught between the plates of "3" models
Quick-action-crankQuick-action-crank (Ks) for height adaption from the side

Quick-action-crankQuick-action-crank frontal (Kf) for height adaption from table front
Electric DriveElectric Drive for height adaption

farben-moeckel-tische"Optional Colours for Moeckel desks (RAL*-Colour scheme)

2001 Red orange · 3000 Flame red · 3003 Ruby red · 3004 Purpel red** · 3020 Traffic red · 5010 Gentian blue · 5012 Light blue · 5015 Sky blue · 5023 Distant blue · 6024 Traffic green · 6029 Mint green · 7016 Anthracit grey · 7021 Black grey · 7024 Graphite grey · 7043 Traffic grey B · 9006 White aluminium · 9016 Traffic white

*Please look up the actual Colour on a RAL-Colour chart.

7035 Light grey is the standard colour free of extra charge. Black is can be chosen as standard colour at some models (M). The lifting frame, the moving part of the lift, is always black.
