Features:

• Generously proportioned tracks for professional drafting
• Clearance slot for oversize paper.
• Horizontal and vertical break both with automatic adjustment.
• Ergonomic finger plate on vertical track.
• Vertical track can be lifted by up to ca. 90°
• Horizontal and vertcal brake with automatic readjustment.
• Counterbalance in vertical track
• Hight precision double hinge protractor head can be lifted by up to 115°; for drawing sheets up to 8 mm thickness.
• Vertical track end wheel adjustable in height.
• All tracks free of play and easily readjustable.
• Polymer covered (acetal) precision ball races in both carriages.

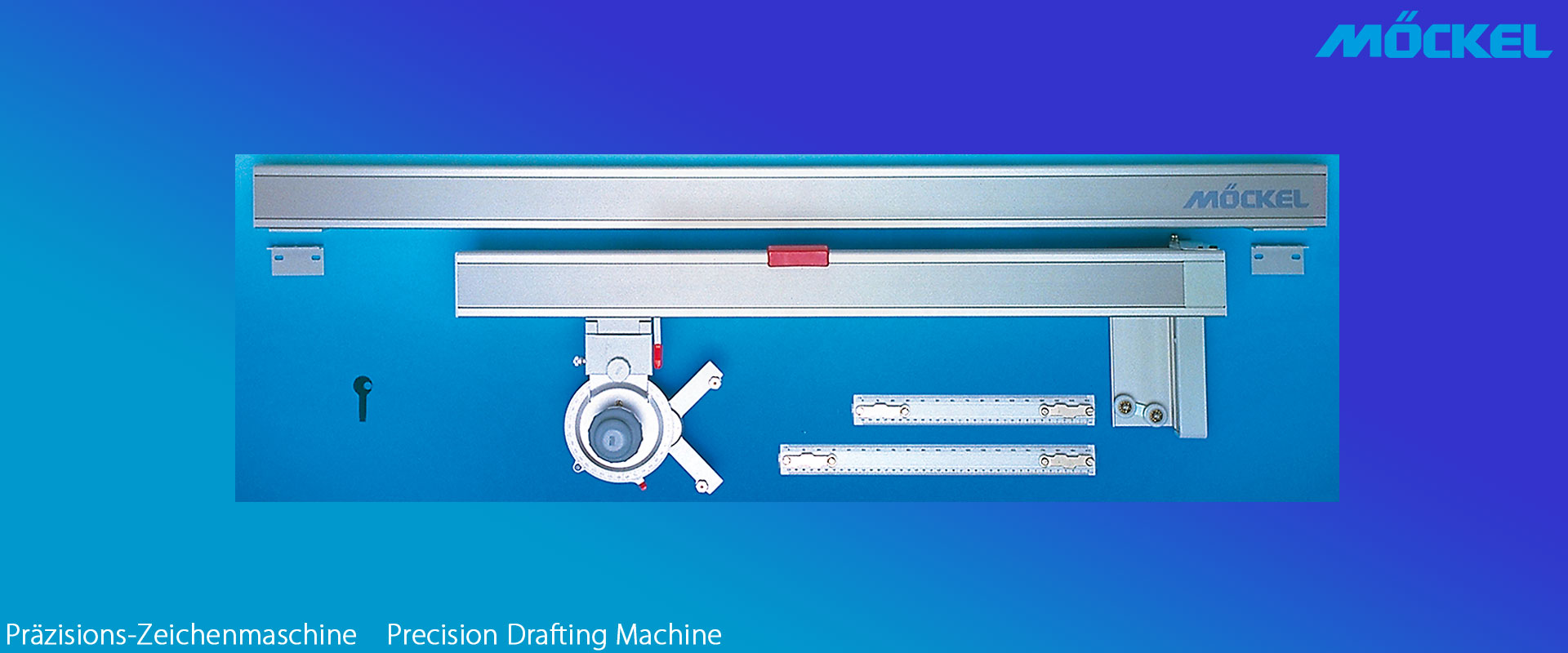

• LW-1 is delivered dismounted.

For medium and large sized boards.

Protractor heads for LW-1 are:
ZG /aV, ZG/aB, ZGrB

»Equipment

Generously proportioned tracks for professional drafting

with strong anodized aluminium track and four acetal covered precision ball races.

Auto adjusting brakes.

Made for large and medium board sizes.
Patented design by Moeckel with more than 50 years of experience.

Suitable drafting tables are ergo SZ and ergo FZ.

High end gear (Old school)

Carriage in precision guidance

Selected item:

Optional equipment:

Track extension for LW-1 with elongated horizontal track and tool tray

Additional track end wheel for LW-1

Special Sizes for LW-1 as customized production is possible
