Möckel Feinmechanik

Height & inclination adjustable desk ergo M1 R

Product features

  • Infinitely variable table heights
    ergo M1 50 - from ca. 50 to 75 cm - 25 cm stroke (Childrens table)
    ergo M1 68 - from ca. 68 to 112 cm - 44 cm stroke
    ergo M1 72 - from ca. 72 to 120 cm - 48 cm stroke (optional)
  • Quick adjustment (S) one hand lever opens and locks the height adjustment. Optionally with quick-action-crank (K) or electric powered adjustment (E).
  • Height adjustment over double-chain drive - no accidental declining of desk top, smooth run with ball bearings.
  • Total weight balance for table top - can be regulated* up to 60 pound, depending on size of board or hardware - easy handling with crank* (* not with 60 cm rack)
  • Space between feet of rack: 60*, 81, 108 or 142 cm - depending on size of table
  • Table sizes see chart below
  • Decor of plate: gray or beech décor
  • Rack powder-coated, light grey - RAL 7035 or black. The lifting frame is always black - RAL 9005
  • 4 adjustable screw feet, for uneven grounds - castors optional - see »Equipment

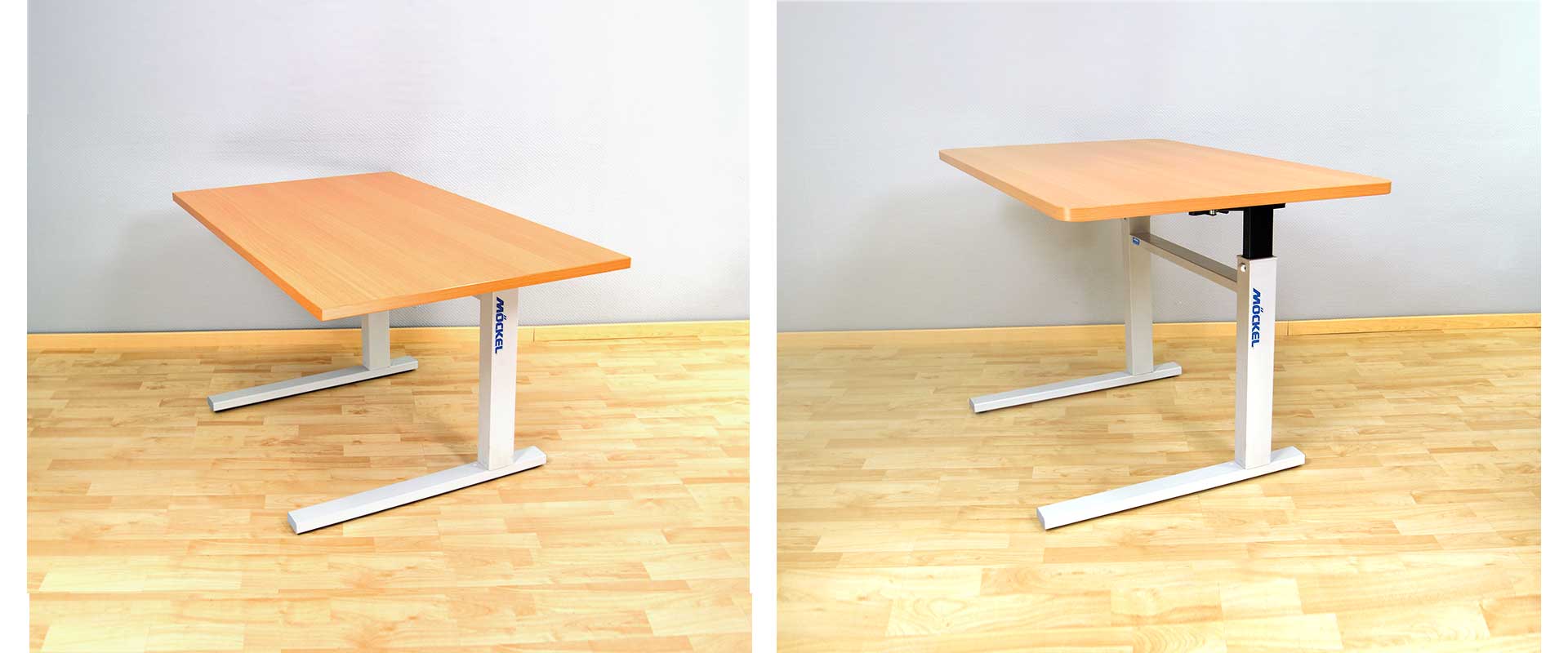

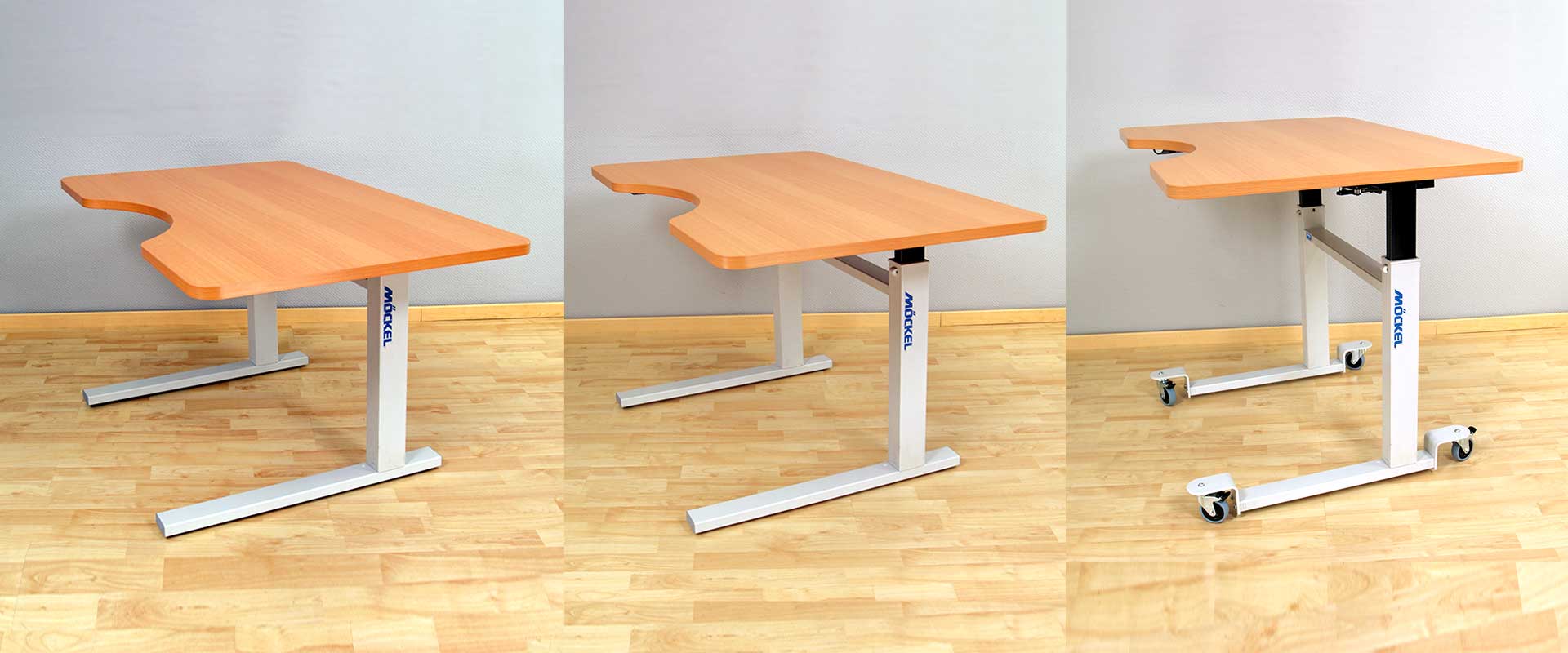

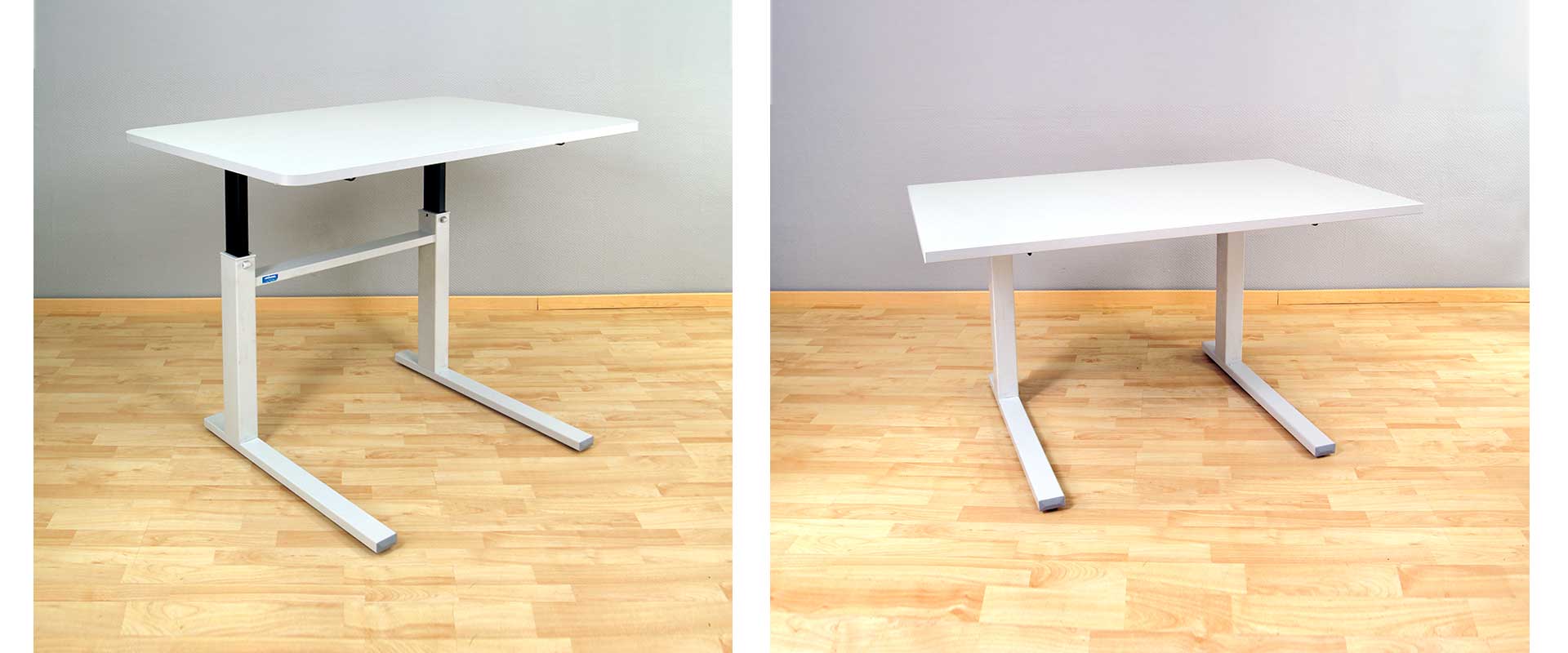

ergo M1 50, 68 or 72 R
Sit stand-on table

Quick adjustment for easy changing working positiones - for better health.
The ergo M1 R is a true sit-stand table that gives back some of the action the muscles and discs need.

Smooth and save all items and hardware glide up and down.

The ergo M1 R is offered with three starting heights: 50 cm as a children's table, 68 cm is the normal height and optionally with 72 cm.

Sitz-Steh-Tisch M1
Sitz-Steh-Tisch M1

The Letter "R"

indicates that this table is suitable for wheelchairs. It is robust and simple to handle. All functions are easily adjusted with just one hand lever.

["R" like in "Rollstuhlunterfahrbar". This wonderfully composed word twists even german tongues ;-) ]

See also »ergo M1

Selected item:

ergo M3

Optional equipment:

castors 4 castors for models M
360° swiveling - with breaks
(adjustable screw feet omitted for technical raeson)
PC-Tray for S and PPC-Tray "A" - grey, for S and P,
adjustable in width from 110 to 195 mm
Cable trayCable tray / wire basket, grey (Kabelführung horizontal)

Vertical cable guidingVertical cable guiding, grey


Cable pass throughCable pass through -going through plate. Colour: grey

Quick-action-crankQuick-action-crank (Ks) for height adaption from the side

Quick-action-crankQuick-action-crank frontal (Kf) for height adaption from table front
Electric DriveElectric Drive for height adaption



farben-moeckel-tische"Optional Colours for Moeckel desks (RAL*-Colour scheme)

2001 Red orange · 3000 Flame red · 3003 Ruby red · 3004 Purpel red** · 3020 Traffic red · 5010 Gentian blue · 5012 Light blue · 5015 Sky blue · 5023 Distant blue · 6024 Traffic green · 6029 Mint green · 7016 Anthracit grey · 7021 Black grey · 7024 Graphite grey · 7043 Traffic grey B · 9006 White aluminium · 9016 Traffic white

*Please look up the actual Colour on a RAL-Colour chart.

7035 Light grey is the standard colour free of extra charge. Black is can be chosen as standard colour at some models (M). The lifting frame, the moving part of the lift, is always black.

Table sizes and designs

table sizes
