Möckel Feinmechanik

Childrens desk ergo S 52  1300 R

Product features

  • infinitely variable adjustment of table height - from 52 to 102 cm - 50 cm stroke
  • Stepless inclination of table top: 0° to 90°
  • One hand lever as crank opens and locks the multi-disc brake for height- and inclination adjustment.
  • Mechanic folds together
  • Total weight balance for table top through gas spring
  • Space between feet of rack: 122 cm
  • Rack powder-coated, light-grey RAL 7035
  • Table sizes see chart below
  • Decor of plate: gray or beech décor
  • 4 adjustable screw feet, for uneven grounds
    - castors optional see »Equipment

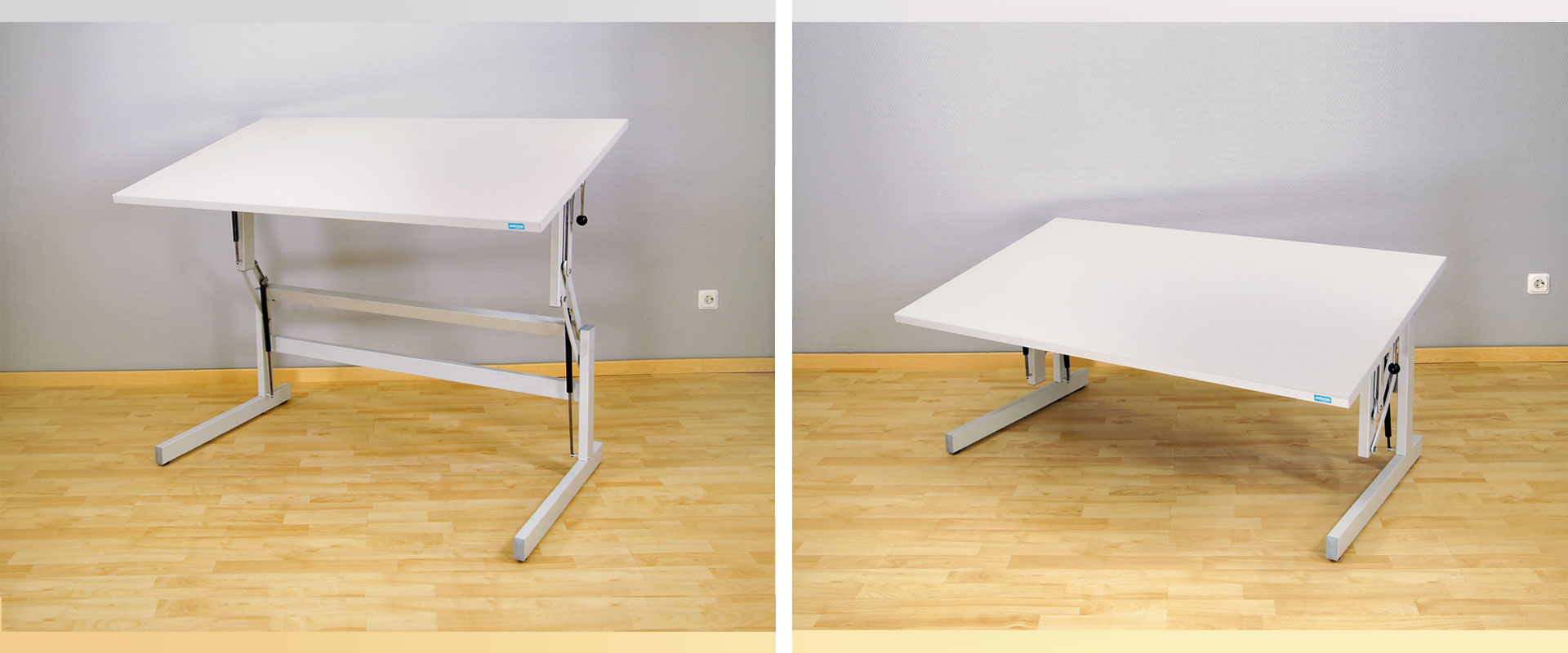

Easy adjustable children's table with extra wide rack

Indispensable wherever there is a demand for quick hight adjustment.

Tops with rounded edges make an ideal match for children in kindergarden, elementry school, schools and also for private use, such as hobby, creativ artwork, etc.

All functons are easily adjusted with just one hand lever. The rack is suitable for use with a wheelchair.

hoehen- und neigungsverstellbarer tisch

The Letter "S"

signals that these ergo-desk models just have one Singel hand lever for height and inclination adjustment.
hoehen- und neigungsverstellbarer tisch

The Letter "R"

indicates that this table is suitable for wheelchairs. It is robust and simple to handle. All functions are easily adjusted with just one hand lever.

["R" like in "Rollstuhlunterfahrbar". This wonderfully composed word twists even german tongues ;-) ]

This table in standard version:

ergo S52 1300

Selected item:

ergo M3

Optional equipment:

castors 4 castors for models S and P
360° swiveling - with breaks
(adjustable feet omitted for technical raeson)
2 fixed wheels2 fixed wheels - lateral
plus 4 adjustable screw feet
2 fixed wheels2 fixed wheels - frontal
plus 4 adjustable screw feet
Stop ruleStop rule - 5mm normal height

swivel traySwivel tray (S & P desks) 30 x 20 cm or 25 x 15 cm including bracket
#80 to #84



Stop bars on 3 sidesStop bars on 3 sides
Elevation ca. 30 mm - with beveled edges
Steel topSteel top with 2 magnets

Special stop ruleSpecial stop rule
lateral guided (clamped on)

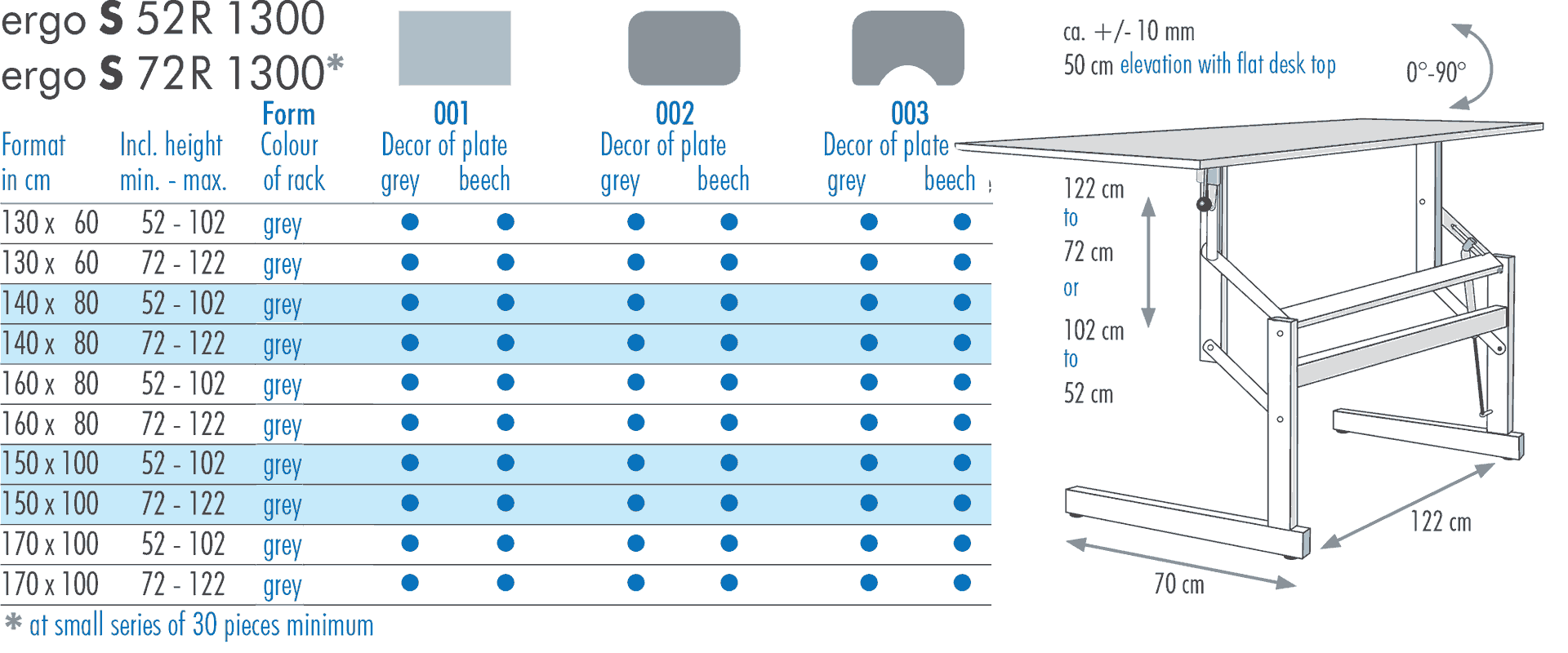

Table sizes and designs

table sizes
